1726-1728.00

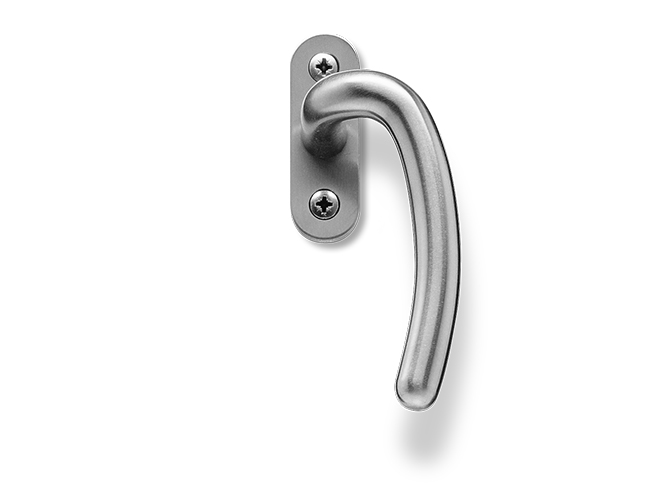

Cranked window handle, ø14 mm. Designed by C.F. Møller Architects.

• Available in solid, satin stainless steel (AISI 304).
• 1726 – with attached rose, 22x65x3 mm.
• 1728 – with attached rose, 30x65x3 mm.
• Drilled for M5 screws or wood screws, fixing centres 43 mm.
• Supplied singly including M5 screws.
• Window handles supplied standard with either 35, 43, 53 or 63 mm spindle length.
• S = special spindle length up to 95 mm at extra cost.
• The handle are available with either 7×7 mm or 8×8 mm spindle.
• Curved window handles should be indicated with either right=R or left=L

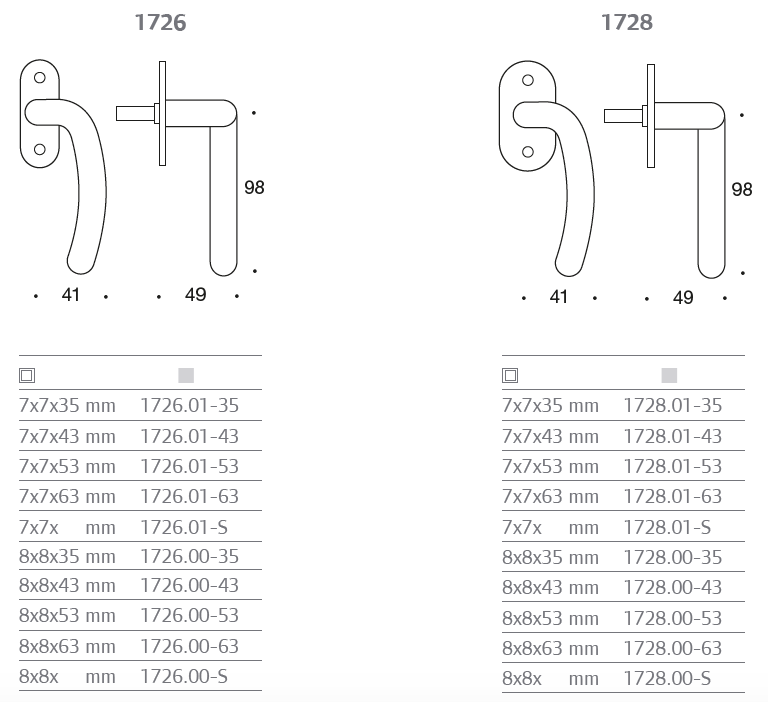

• Examples of part numbers:
  1726 with 7x7x35 mm pin: 1726.01R-35
