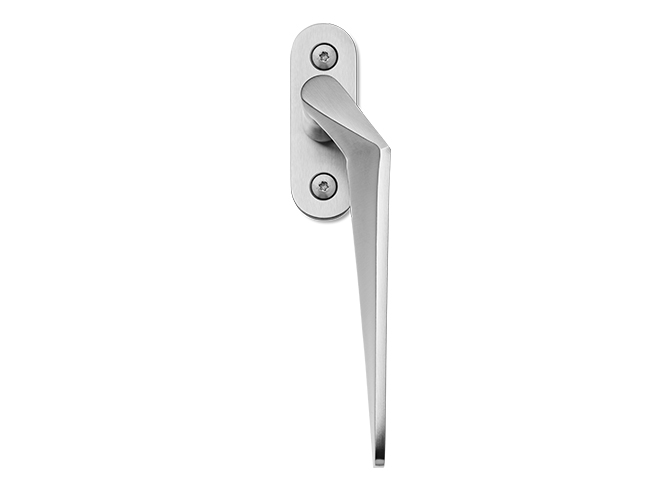

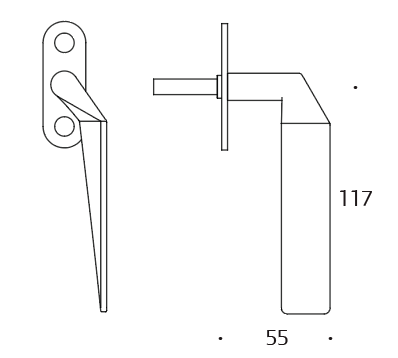

Cranked Randi-Line® Komé window handle, ø14 mm solid. Designed by C.F. Møller Architects, fits door handle no. 1073
- Available in solid, satin stainless steel (AISI 304).
- 1746 – with attached rose, 22x65x3 mm.
- 1748 – with attached rose, 30x65x3 mm.
- Drilled for M5 screws or wood screws, fixing centres 43 mm.
- Supplied singly including M5 screws.
- Window handles supplied standard with either 35, 43, 53 or 63 mm spindle length.
- S = special spindle length up to 95 mm at extra cost.
- The handle are available with either 7×7 mm or 8×8 mm spindle.
- Curved window handles must be specified with either right=R or left=L

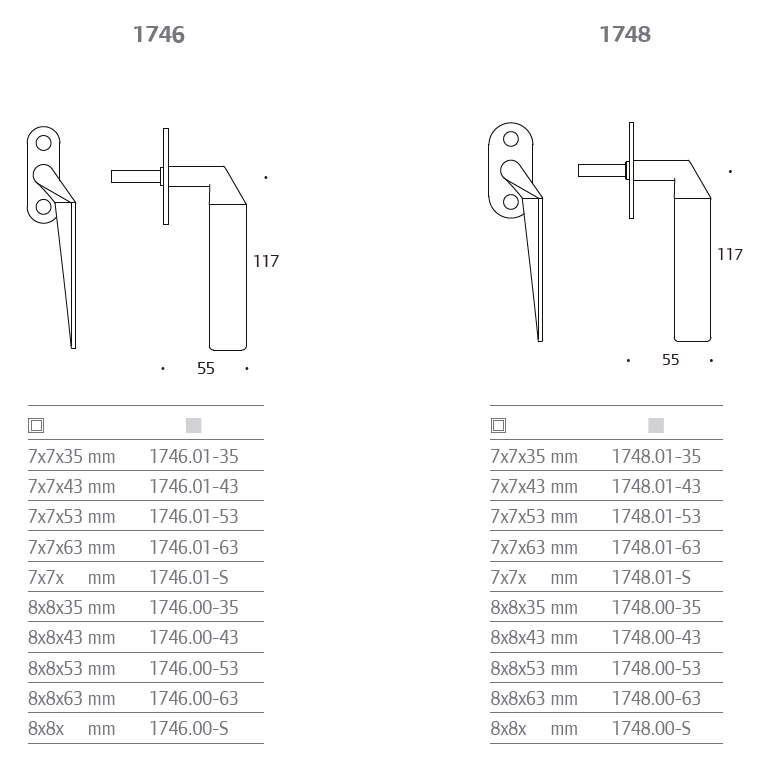

Examples of part numbers:
1746 with 7x7x35 mm pin: 1746.01R-35
