1390.00

Backplate, 230x32x2 mm, for narrow profile doors

  • Available in satin stainless steel (AISI 304).
  • With lever position at the bottom for handle.
  • Drilled for wood screws or M4 screws.
  • Supplied in pairs including wood screws 3,5×13 mm. Fits Scandinavian standard locks. Variants with tapered cylinder ring are supplied with screws M4x84 mm Torx no 15 and Randi-Plug®.
  • We recommend use of rubber washer no 61390 for mounting on glass/aluminium and steel doors.

Specifications

Series: Randi-Line®
Stainless steel
Download Hi-Res Photo
Download Specifications

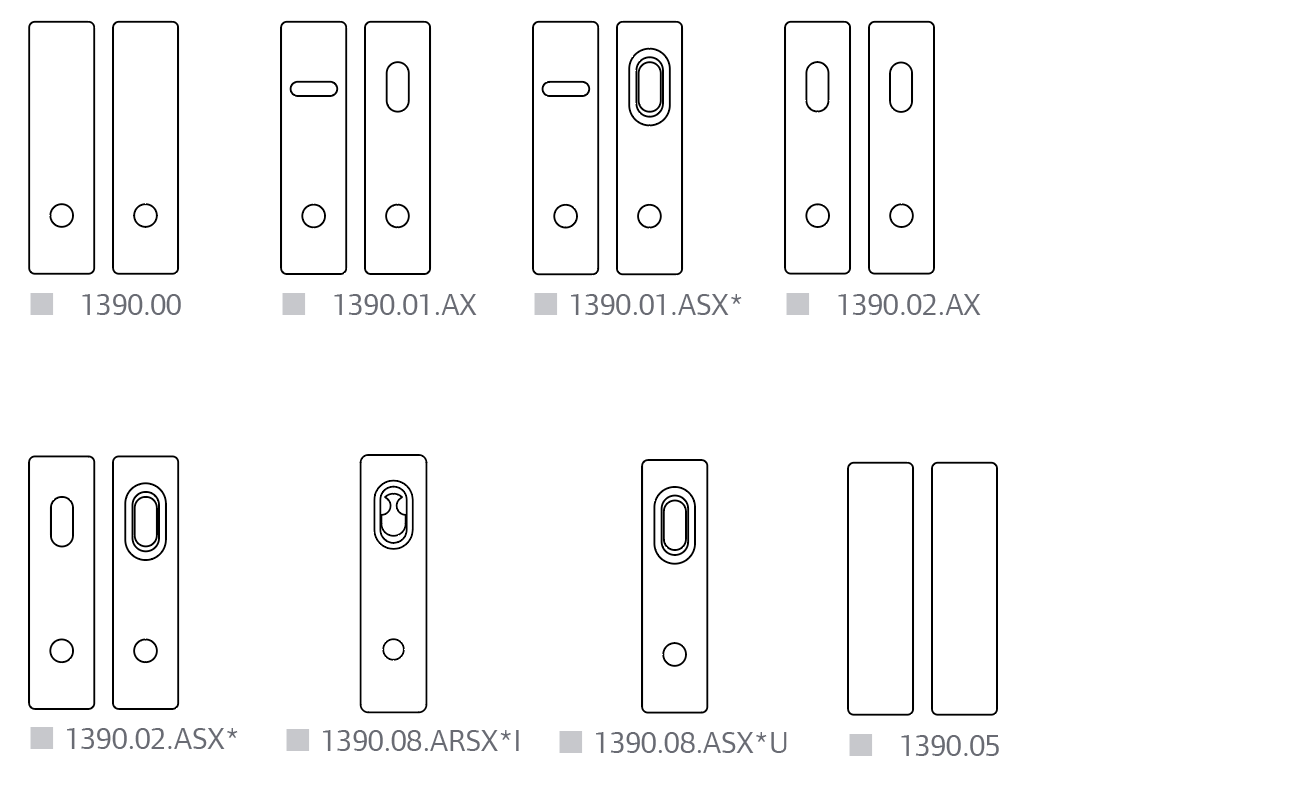

Product variants



* Backplates with tapered cylinder rings are available in heights 9, 11, 13, 15 and 18 mm, for oval shaped cylinder and heights 9, 13, 18 mm for Rokoko cylinder. (incl. 2 mm. height of the backplate) with welded bushes on the outside plate.

X indicates the distance between the centre of the lever hole and the centre of the keyhole/cylinder (X-centres).





1754-1755-1757-1758.00
1746-1748.00 RAW
1746-1748.90
1768-1770.00
