1391.00

Backplate, 230x32x2 mm, for narrow profile doors.
Fits the following locks: ASSA 1361, 1362,
EL480, EL482 and EL490.

  • Available in satin stainless steel (AISI 304).
  • With welded bushes on the outside plate.
  • With lever position at the bottom for handle. X-centres = 115 mm
  • Drilled for wood screws or M4 screws.
  • Supplied in pairs including M4x84 mm Torx no 15 and Randi-Plug®.
  • We recommend use of rubber washer no 61390 for mounting on glass/aluminium and steel doors

Special product, produced to order

Specifications

Series: Randi-Line®
Stainless steel
Download Hi-Res Photo
Download Specifications

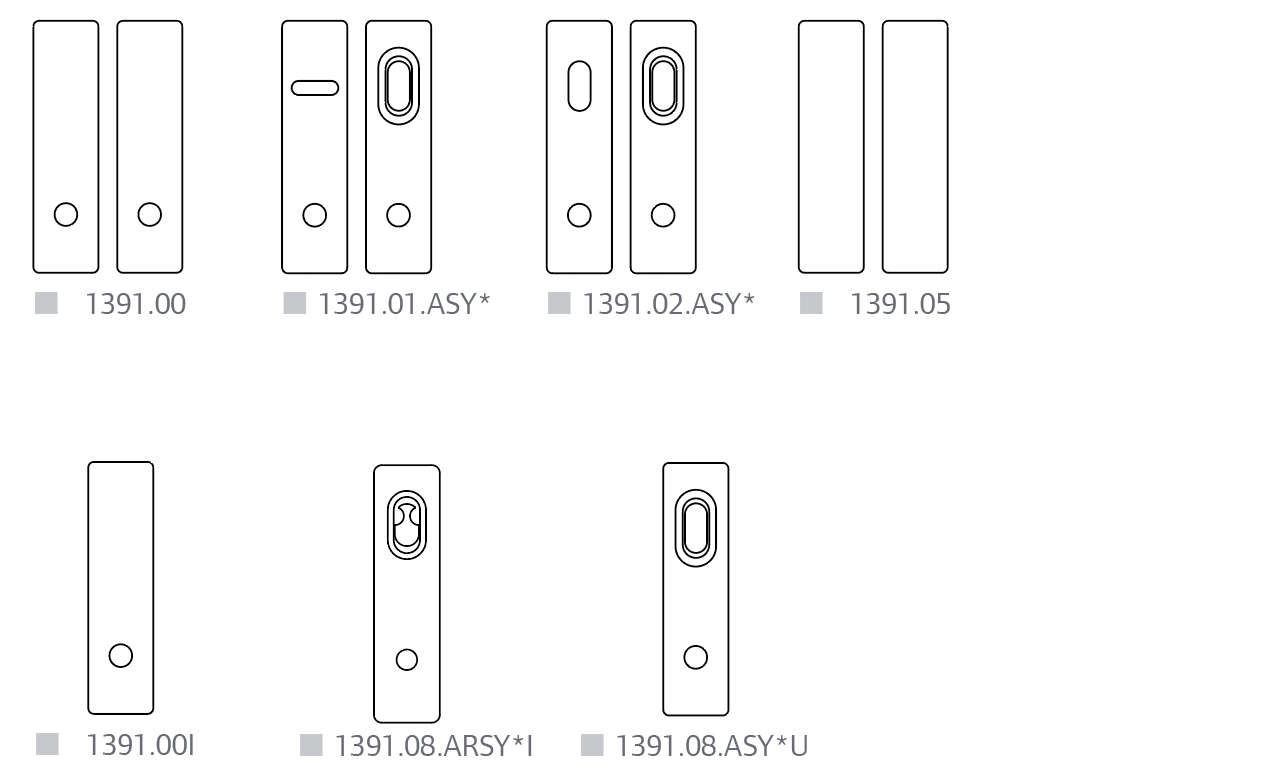

Product variants



* Backplates with tapered cylinder rings are available in heights 9, 11, 13, 15 and 18 mm, for oval shaped cylinder and heights 9, 13, 18 mm for Rokoko cylinder. (incl. 2 mm. height of the backplate) with welded bushes on the outside plate.

x-centres = 115 mm
